Performance Ratings
●
AAMA Rating @ 59″ x 99″: AW-PG70
●
Design Pressure: 70.18 psf — 0.02″
●
Air Infiltration @ 6.24 psf: <0.06 cfm/ft²
●
Air Exfiltration @ 1.57 psf: <0.01 cfm/ft²
●
Water Resistance: 15.04 psf (pass)
●
Uniform Load @ 105.27 psf: <0.01″
●
Forced Entry (Type B): Grade 10
●
U-Value: 0.27
●
STC Rating: 46 dB
Opening Options
●
Tilt & Turn — Ventilation + full open functionality
●
Turn Only (Side Hung) — Classic casement-style opening
●
Tilt Only (Hopper) — Controlled top-inward ventilation
●
Fixed (Inoperable) — Maximum thermal & structural performance

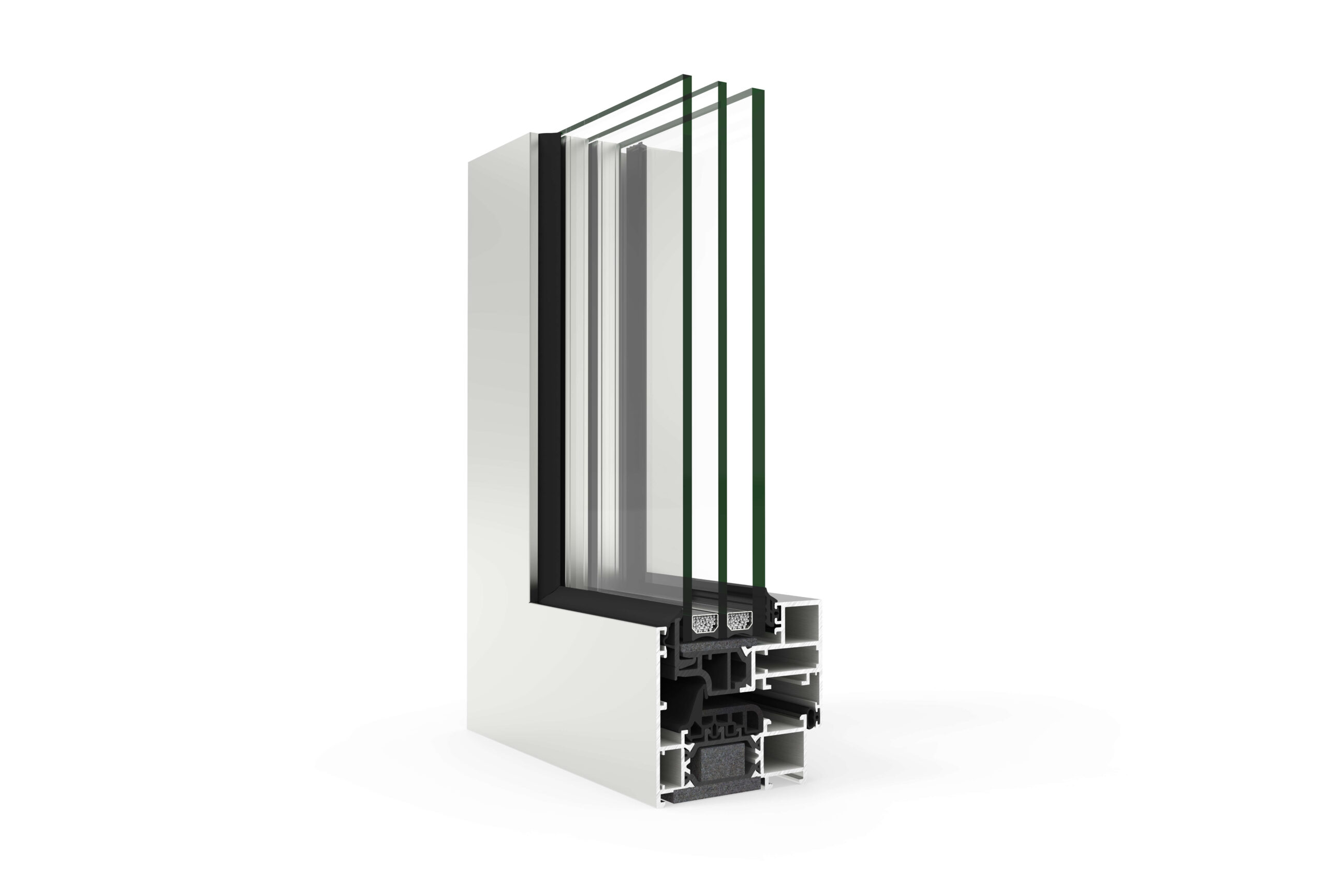

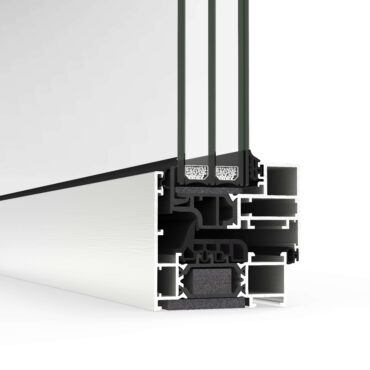

Profile Specs
●
Profile Thickness: 1/16″ (1.9 mm)
●
Max Glazing Thickness: 1 9/16″ (40 mm)
●
Polyamide Strip Length: 1 3/8″ (35 mm)
●
Frame Section: 2 3/4″ (70 mm)
●
Sash Section: 2 3/4″ (70 mm)
Maximum Dimensions Per Sash
| Dimension | Imperial | Metric |
|---|---|---|
| Maximum Width | 51″ | 1,300 mm |
| Maximum Height | 96″ | 2,400 mm |
| Maximum Sash Weight | 352.74 lb | 160 kg |
CORTIZO Authorized Cortizo dealer — European-engineered aluminum systems.
