The COR80 Industrial is Cortizo’s highest-performing aluminum window system, engineered for residential applications where thermal efficiency, structural strength, and acoustic comfort are paramount. Rated AW-PG80 under AAMA standards with a design pressure of 70.18 psf, it achieves a remarkable U-Value of 0.15 — among the best in its class — and an STC rating of 46 dB, with near-zero air infiltration in both directions. Supporting glazing up to 2 7/8″ (73 mm) thick, sash weights up to 352.74 lb (160 kg), and maximum dimensions of 59″ × 102″, the COR80 Industrial represents the pinnacle of aluminum window engineering for the uncompromising homeowner.
Performance Ratings
- ● AAMA Rating @ 59″ × 99″: AW-PG80
- ● Design Pressure: 70.18 psf
- ● Air Infiltration @ 6.24 psf: <0.01 cfm/ft²
- ● Air Exfiltration @ 1.57 psf: <0.01 cfm/ft²
- ● Water Resistance: 15.04 psf (pass)
- ● Uniform Load @ 105.27 psf: <0.01″
- ● Forced Entry (Type B): Grade 10
- ● U-Value: 0.15
- ● STC Rating: 46 dB
Opening Options
- ● Tilt & Turn — Ventilation + full open functionality
- ● Turn Only (Side Hung) — Classic casement-style opening
- ● Tilt Only (Hopper) — Controlled top-inward ventilation
- ● Fixed (Inoperable) — Maximum thermal & structural performance
Hardware Options
- ● Concealed Hinges — Optional
- ● Security Hardware — Optional

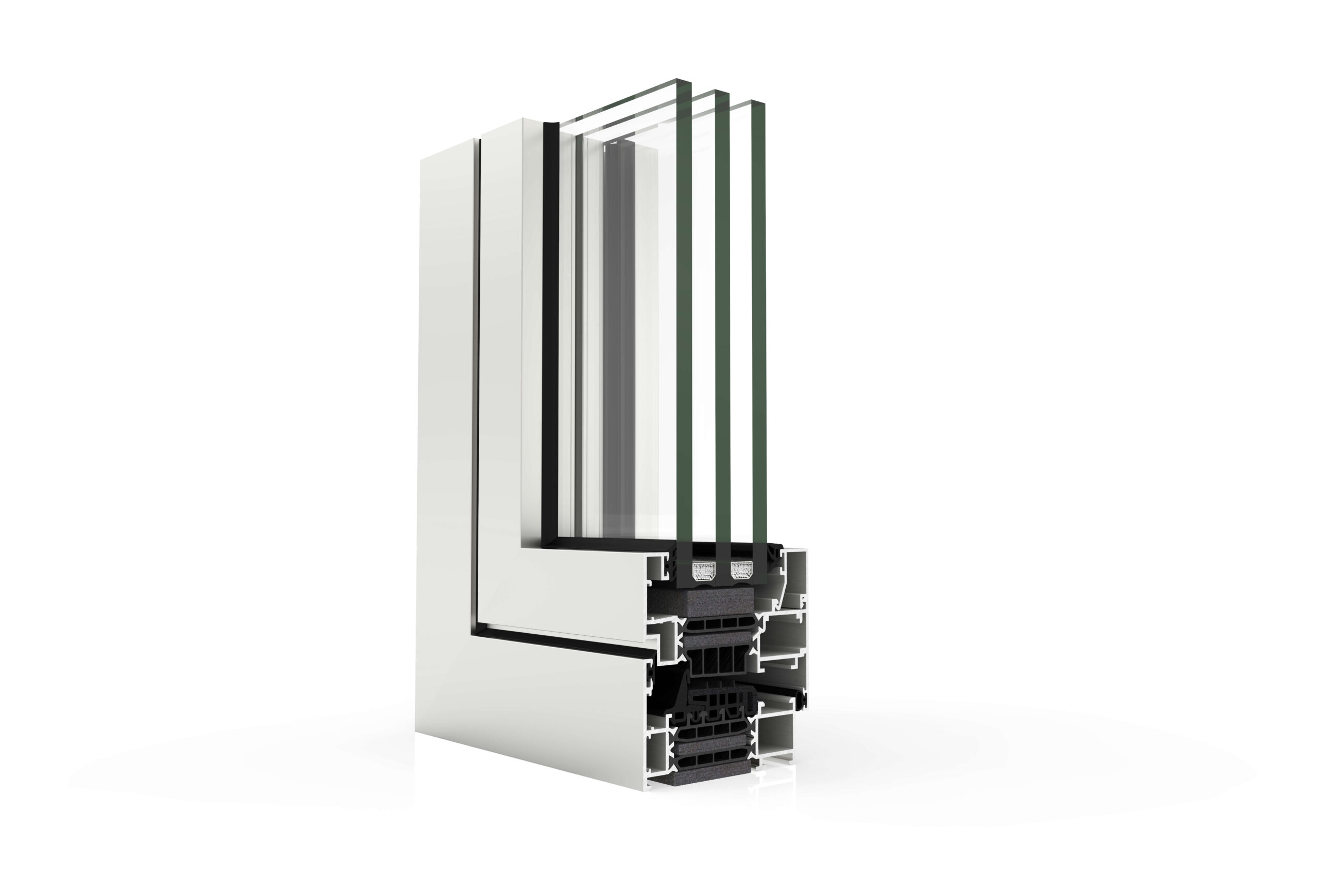

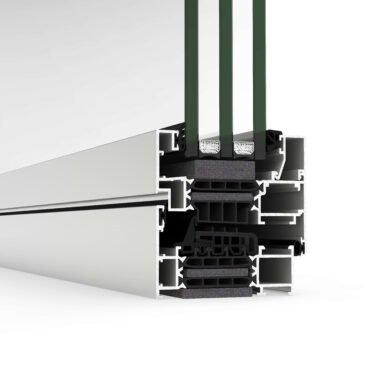

Profile Specs
- ● Profile Thickness: 1/16″ (1.5 mm)
- ● Max Glazing Thickness: 2 7/8″ (73 mm)
- ● Polyamide Strip Length: 1 3/4″ (45 mm)
- ● Frame Section: 3 1/8″ (80 mm)
- ● Sash Section: 3 7/16″ (88 mm)
Maximum Dimensions Per Sash
| Dimension | Imperial | Metric |
|---|---|---|
| Maximum Width | 59″ | 1,500 mm |
| Maximum Height | 102″ | 2,600 mm |
| Maximum Sash Weight | 352.74 lb | 160 kg |
CORTIZO — Authorized Cortizo dealer — European-engineered aluminum systems.
