The COR60 Industrial is a heavy-duty aluminum window system by Cortizo built to perform at the highest levels of structural and environmental resistance. Rated AW-PG55 at standard dimensions and AW-PG90 when reinforced under AAMA standards, it achieves a design pressure of 55.14 psf — and up to 90.23 psf reinforced — with near-zero air infiltration and a Grade 10 forced entry rating. Designed for demanding residential applications, the COR60 Industrial supports sash weights up to 352.74 lb (160 kg) and spans up to 59″ × 102″ per sash, delivering uncompromising performance within a robust yet refined aluminum profile.
Performance Ratings
- ● AAMA Rating @ 59″ × 99″: AW-PG55
- ● AAMA Rating (Reinforced): AW-PG90
- ● Design Pressure: 55.14 psf
- ● Design Pressure (Reinforced): 90.23 psf
- ● Air Infiltration @ 6.24 psf: 0.06 cfm/ft²
- ● Air Exfiltration @ 1.57 psf: <0.01 cfm/ft²
- ● Water Resistance: 15.04 psf
- ● Uniform Load @ 82.71 psf: <0.01″
- ● Forced Entry (Type B): Grade 10
Opening Options
- ● Tilt & Turn — Ventilation + full open functionality
- ● Turn Only (Side Hung) — Classic casement-style opening
- ● Tilt Only (Hopper) — Controlled top-inward ventilation
- ● Fixed (Inoperable) — Maximum thermal & structural performance

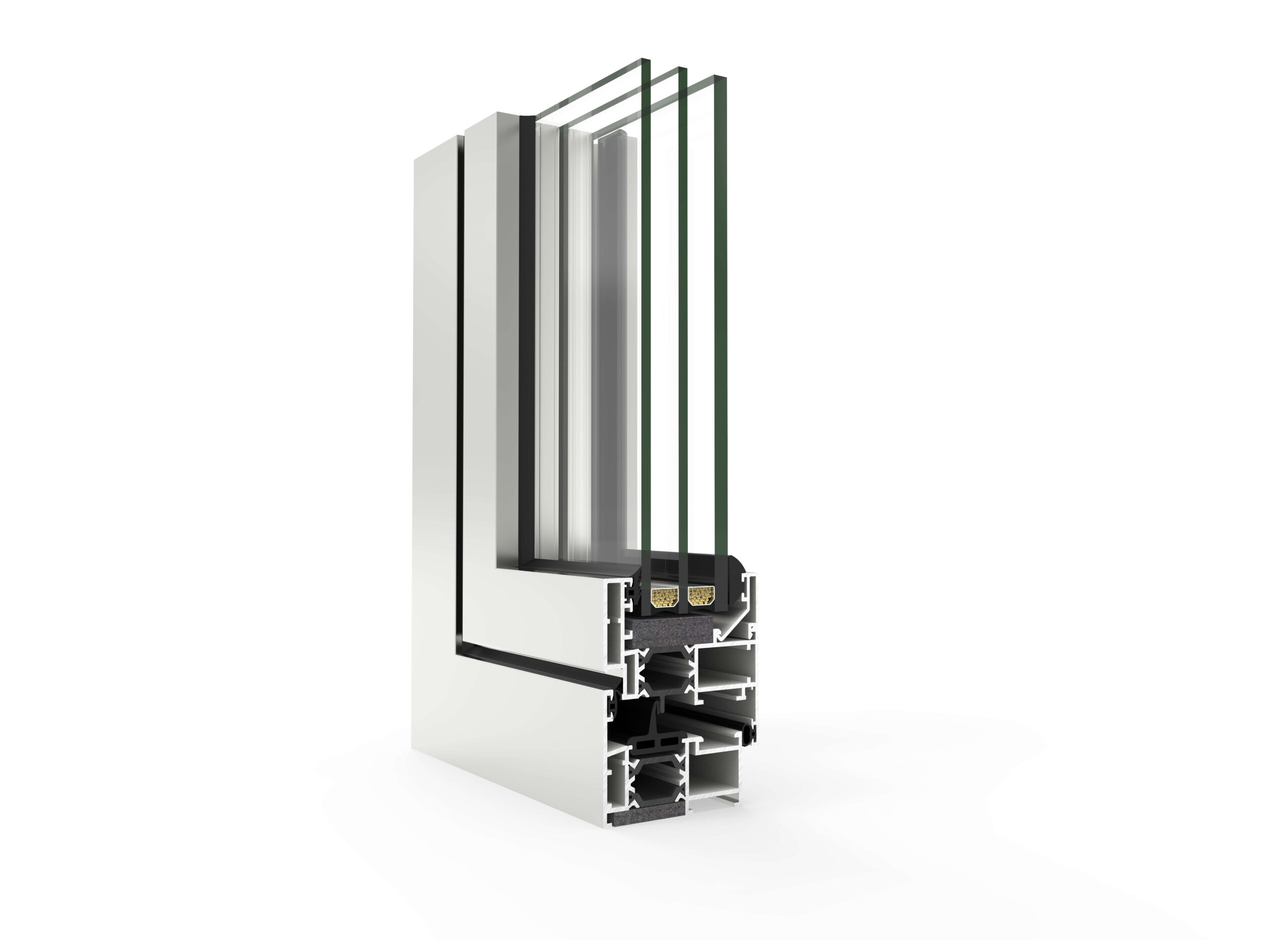

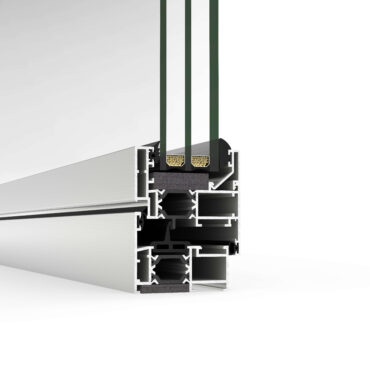

Profile Specs
- ● Frame Section: 2 3/8″ (60 mm)
- ● Sash Section: 2 5/8″ (68 mm)
Maximum Dimensions Per Sash
| Dimension | Imperial | Metric |
|---|---|---|
| Maximum Width | 59″ | 1,500 mm |
| Maximum Height | 102″ | 2,600 mm |
| Maximum Sash Weight | 352.74 lb | 160 kg |
CORTIZO — Authorized Cortizo dealer — European-engineered aluminum systems.
