The Schüco Living Classic is a premium steel-reinforced PVC-U window system engineered by Schüco, one of Europe’s leading building envelope manufacturers, for residential, commercial, and institutional projects demanding thermal efficiency, acoustic comfort, and security. Built on an 82 mm, 7-chamber profile platform with twin-system gasket technology, it achieves Passive House performance with Uw values as low as 0.72 W/m²K and acoustic insulation up to Rw = 47 dB(A). Supporting double and triple glazing up to 52 mm, sash sizes up to 59″ × 102″, weights up to 264 lb, and burglar resistance up to RC 3, the Schüco Living Classic delivers certified high-performance engineering for premium new builds and renovations.
Performance Ratings
- ● Thermal Transmittance (Uw): From ≈ 0.72 W/m²·K
- ● Frame Transmittance (Uf): ≥ 0.96 W/m²·K
- ● Air Permeability: Class 4 — EN 12207
- ● Water Tightness: Class 9A — EN 12208
- ● Wind Load Resistance: Class C5 / B5 — EN 12210
- ● Burglar Resistance: Up to RC 3 — EN 1627
- ● Acoustic Insulation: Up to Rw = 47 dB(A)
Configurations
- ● Casement — Classic side-hung opening
- ● Tilt & Turn — Ventilation + full open functionality
- ● Hopper & Top-Hung — Controlled ventilation
- ● Fixed (Inoperable) — Maximum thermal performance
System Features
- ● Twin-System: Centre-gasket (MD) or rebate-gasket (AS)
- ● Barrier-Free Thresholds: Zero-level options
- ● Vent Contours: Classic, Rondo, Viva, Panorama

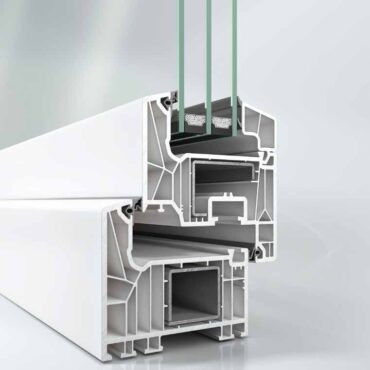

Profile & Construction
- ● Material: Steel-reinforced PVC-U
- ● System Depth (Frame & Sash): 82 mm (3.23″)
- ● Chamber Configuration: 7 chambers
- ● Minimum Face Width: 120 mm (4.72″)
- ● Gasket Technology: Weldable premium EPDM seals
- ● Glazing Thickness: 24–52 mm (0.94″–2.05″)
- ● Glazing Options: Double & triple glazing compatible
- ● Drainage: Up to 3 drainage levels
Available Finishes
- ● Schüco UnlimitedFinish — 300+ metallic, solid & woodgrain colours
- ● Schüco TopAlu — Premium aluminium-look foil finishes
- ● Dual Colour — Different interior/exterior surfaces
- ● Coordinated Gaskets — Silver-grey or black to match profile
Sustainability
- ● Fully Recyclable — All Schüco PVC-U systems
- ● VinylPlus Certified — PVC sustainability product label
- ● Circular Economy — Rewindo & RE:CORE recycling networks
Sash Dimensions & Capacity
| Specification | Imperial | Metric |
|---|---|---|
| Maximum Sash Width | 59″ | 1,500 mm |
| Maximum Sash Height | 102″ | 2,600 mm |
| Minimum Sash Size | 16″ × 16″ | 400 × 400 mm |
| Maximum Sash Weight | 264.55 lb | 120 kg |
