Performance Ratings

●
Thermal Transmittance (Uw): From ≈ 1.3 W/m²K (≈ 0.23 Btu/h·ft²·°F)
●
Air Permeability: Class 4 (EN 12207)
●
Water Tightness: Class 7A (EN 12208)
●
Wind Load Resistance: Class C5 (EN 12210)
●
Acoustic Insulation: Up to 41 dB

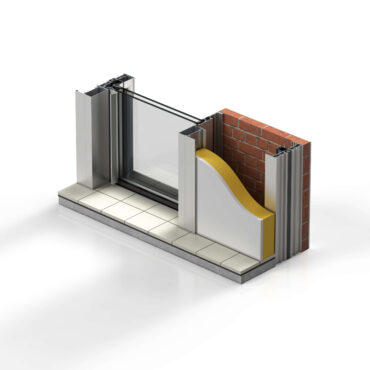

Profile & Construction

●
Material: Aluminum with polyamide thermal break
●

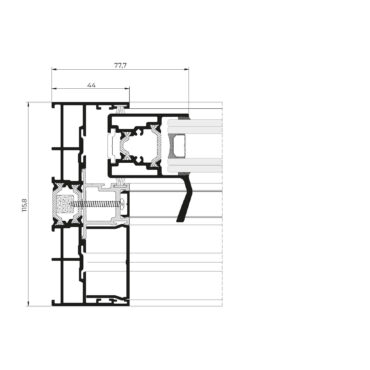

Frame Depth (Double Track): 116 mm (4.57″)
●
Frame Depth (Triple Track): 182 mm (7.17″)
●
Sash Profile Depth: 37 mm (1.46″)
●
Sightline (Visible Interlock): ~20 mm (0.79″)
●
Thermal Break: 16 – 24 mm (0.63 – 0.94″)
●
Profile Wall Thickness: ~1.7 mm (0.067″)
●
Max Glazing Thickness: ~30 mm (1.18″) — double glazing standard

Configurations

●
Sash Options: 2, 3, 4, up to 6 sliding sashes
●
Track Options: Double or triple track (multi-rail available)
●
Pocket / Galandage: Sashes slide fully concealed into wall cavity
●
Corner Configuration: 90° corner opening without vertical mullion

Key Features

●
Ultra-slim ~20 mm sightlines for maximum transparency and glass area
●
Thermally broken frame for superior energy performance
●
Smooth sliding operation on robust rollers with stainless-steel tracks
●
Embedded threshold options for accessibility & wheelchair compliance

Available Finishes

●
Powder Coat: Full RAL palette & special finishes
●
Wood-Effect — Decorative laminate finishes
●
Anodized — Durable natural metal finish
●
Bi-Colour — Different interior & exterior finishes

Maximum Dimensions & Capacity Per Sash
